型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
65WQ42-9-2.2 |
φ65 |
42 |
9 |
2900 |
2.2 |
56 |
60 |
|
65WQ25-15-2.2 |
φ65 |
25 |
15 |
2900 |
2.2 |
52 |
60 |
|
65WQ37-13-3.0 |
φ65 |
37 |
13 |
2900 |
3.0 |
55 |
70 |
|
65WQ25-28-4.0 |
φ65 |
25 |
28 |
2900 |
4.O |
58 |
85 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

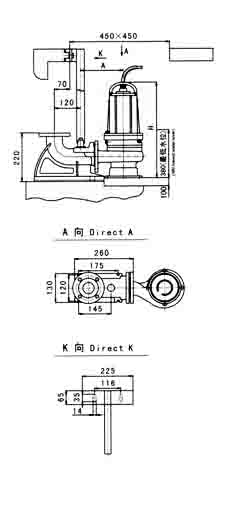

WQ型外形安裝尺寸圖OUT-FORM AND INSTALLATION DIMENSIONS OF MODEL WQ
自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
H0se
movable installation
|

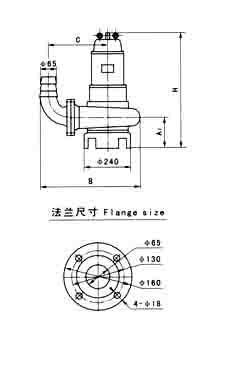

注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|
型號Model |
H |
A |
A1 |
B |
C |
|
65WQ42-9-2.2 |
630 |
270 |
155 |
570 |
400 |
|
65WQ25-15-2.2 |
630 |
270 |
155 |
570 |
400 |
|
65WQ37-13-3 |
650 |
270 |
170 |
580 |
400 |
|
65WQ25-28-4 |
680 |
270 |
170 |
580 |
400 |
