型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
250WQ600-9-30 |
φ250 |
600 |
9 |
980 |
30 |
74 |
850 |
|
250WQ500-10-30 |
φ250 |
500 |
10 |
980 |
30 |
71 |
850 |
|
250WQ700-10-37 |
φ250 |
700 |
10 |
1450 |
37 |
81 |
850 |
|
250WQ600-12-37 |
φ250 |
600 |
12 |
1450 |
37 |
78 |
850 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage

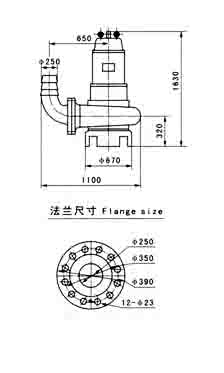

pump (see the table above), see the next page for the out-form dimensions.
|

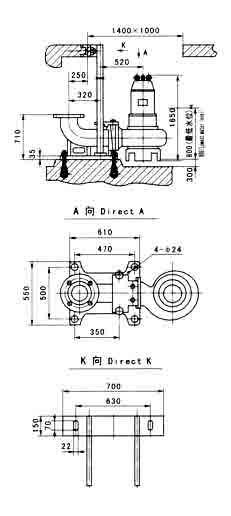

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ
auto-stirring sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
250WQ600-9-30 |
1780 |
600 |
1400 |
900 |
|
250WQ500-1O-30 |
1780 |
600 |
1400 |
900 |
|
250WQ700-10-37 |
1780 |
600 |
1400 |
900 |
|
250WQ600-12-37 |
1780 |
600 |
1400 |
900 |
